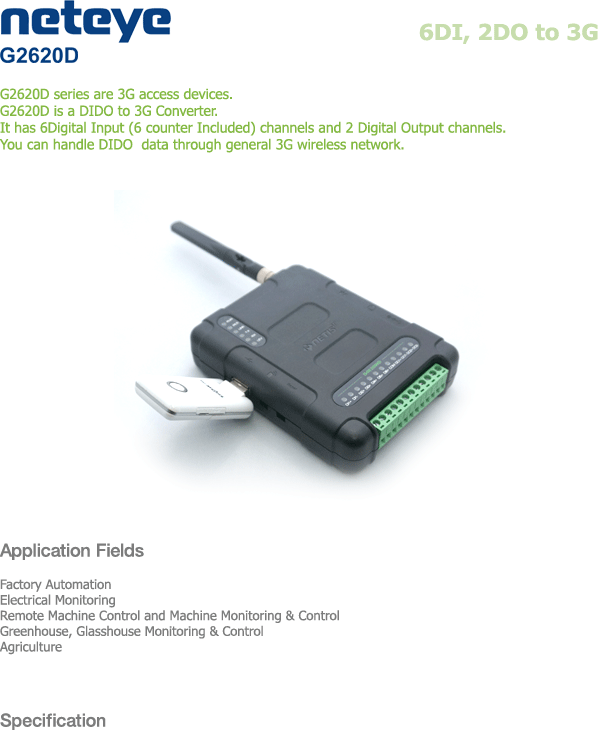

Item Description
CPU 8-Bit Micro Controller, 88.4736Mhz
Memory 64Kbytes Code Memory
64Kbytes Data Memory
Network Interface Wired Interface
100 Base-T Ethernet Interface (IEEE 802.3)
Network Protocol TCP/UDP/IP/ICMP/ARP/
IEEE802.3(Standard Ethernet)
3G Interface
connection type ; USB type A
supported 3G(USB) Modem
. SPH-H1300(samsung)
. LM-700WU(LG inotek)
. EV-HM100(KT Ever)
. CHU-629K(C-motech)
. CWE-624K(C-motech)
. L-02A(LG)
. W220(SDC)
Digital Input
Interface
Isolated Digital(pulse) Input 6 Channel (-50 ~ 50VDC)
Ch#1 ; Independent mode, Level mode only
          Throughput or Highspeed mode
Ch#2 ~ Ch1#6 ; Common mode, Level or Dry mode
                        Throughput mode only
Isolation Voltage: 2500Vrms
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input)
Digital Output Interface Isolated Independent mode Digital Output 2 Channel.
Photo Relay. Max 600mA.
Isolation Voltage: 2500Vrms
Indicator
RUN(Red) : Blink when system status is good.
TCP(Orange) : It lights on when TCP Socket connected.
LINK(Green) : It lights on when connected LAN cable.
TX(Green) : It lights on when LAN Data Transmisson.
RX(Yellow) : It lights on when LAN Data Received.
Lev(Red) : It lights on when selected level mode.
DI1~6(Green) : It lights on when received active signal DI port.
DO1,2(Red) : It lights on when controlled DO port on state.
Utility Software Web Setup (Windows 98/ME/NT/2000/XT)
Simulator:Test result display demo program
Environment
Input Current : max 700mA
Input Voltage : DC5V
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 70 °C
Dimension 98(W)x130(D)x33(H)mm
Ordering Information Digital Input/ Digital Output to 3G device
