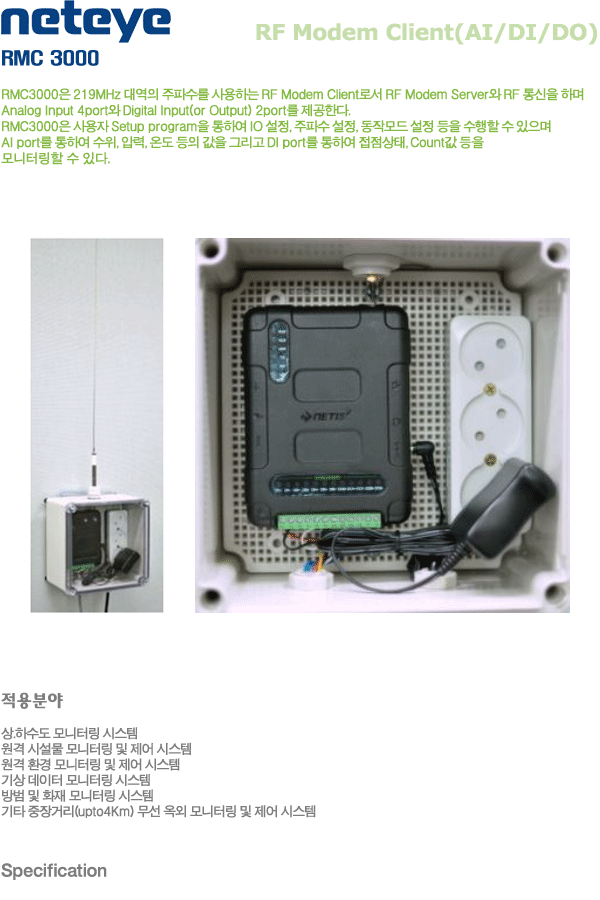

| Item |
Description |
| System |
 |
8-Bit Micro Controller, 88.4736Mhz System clock
|
|
Memory
- 64KBytes Code Memory
- 64KBytes Data Memory |
|
| Network Interface |
10/100 Base-T Ethernet Interface (IEEE 802.3)
Wired
Interface |
| Network Protocol |
TCP/UDP/IP/ICMP/ARP, IEEE802.3(Standard Ethernet) |
|
Device ability
|
TCP Server
|
|
RF Spec.
|
|
Frequency ; 219.0 MHz ~ 219.225 MHz
|
|
Digital AFSK(MSK) Modem
|
|
송신출력; 10mW(10 dBm)
|
|
deviation; +-2.5KHz
|
|
수신감도; -125dBm
|
|
|
Analog Input
Interface
|
|
Differential mode analog input 4 channel
|
|
Input condition ; 4 ~ 20mA, 0 ~ 5VDC
|
|
Converting resolution ; 12 bit
|
|
Sampling rate per 1 second ; 3 sample/channel
|
|
|
Digital Input
Interface
|
|
Isolated Digital(pulse) Input 2 Channel (-50 ~ 50VDC)
|
|
Independent mode, Wet mode & Throughput mode.
|
|
Isolation Voltage: 2500Vrms
|
|
Input resistance : 2.4k @ 0.5w (for digital Input/
pulse Input)
|
|
|
Digital Output Interface
(Option)
|
|
Isolated Independent mode Digital Output 2 Channel.
|
|
Photo Relay. Max 600mA.
|
|
Isolation Voltage: 2500Vrms
|
|
| Indicators |
|
RUN(Red) : Blink when system status is good
|
|
TCP(Orange) : It lights on when TCP Socket connected
|
|
LINK(Green) : It lights on when connected LAN cable
|
|
TX(Green) : It lights on when LAN Data Transmisson.
|
|
RX(Yellow) : It lights on when LAN Data Received
|
|
RF(Red) : It lights on when RF Data Received
|
|
| Utility Software |
Setup utility (Windows 98/ME/NT/2000/XT)
Simulator:Test result
display demo program
|
| Environment |
|
Input Current : max 500mA
|
|
Input Voltage : 5VDC adapter |
|
Storage Temperature : -30 ~ 70 °C
|
|
Operating Temperature : -20 ~ 50 °C
|
|
| Dimension |
98mm(W) * 130mm(H) * 33mm(D)
|
