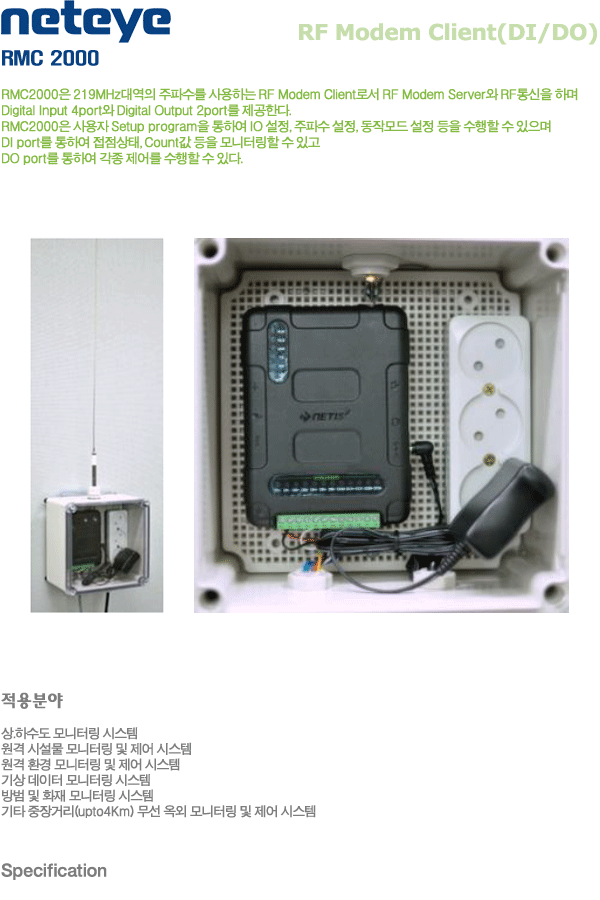

Item Description
System

8-Bit Micro Controller, 88.4736Mhz System clock

Memory
- 64KBytes Code Memory
- 64KBytes Data Memory
Network Interface 10/100 Base-T Ethernet Interface (IEEE 802.3)
Wired Interface
Network Protocol TCP/UDP/IP/ICMP/ARP, IEEE802.3(Standard Ethernet)

Device ability

TCP Server

RF Spec.

Frequency ; 219.0 MHz ~ 219.225 MHz

Digital AFSK(MSK) Modem

송신출력; 10mW(10 dBm)

deviation; +-2.5KHz

수신감도; -125dBm

Digital Input
Interface

Isolated Independent mode Digital(pulse) Input 4 Channel(-50 ~ 50VDC)

Wet mode. Throughput mode.

Isolation Voltage: 2500Vrms

Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input)

Digital Output Interface

Isolated Independent mode Digital Output 2 Channel.

Photo Relay. Max 600mA.

Isolation Voltage: 2500Vrms

Indicators

RUN(Red) : Blink when system status is good

TCP(Orange) : It lights on when TCP Socket connected

LINK(Green) : It lights on when connected LAN cable

TX(Green) : It lights on when LAN Data Transmisson.

RX(Yellow) : It lights on when LAN Data Received

RF(Red) : It lights on when RF Data Received

Utility Software

Setup utility (Windows 98/ME/NT/2000/XT)
Simulator:Test result display demo program

Environment

Input Current : max 500mA

Input Voltage : 5VDC adapter

Storage Temperature : -30 ~ 70 °C

Operating Temperature : -20 ~ 50 °C

Dimension

98mm(W) * 130mm(H) * 33mm(D)

etc
