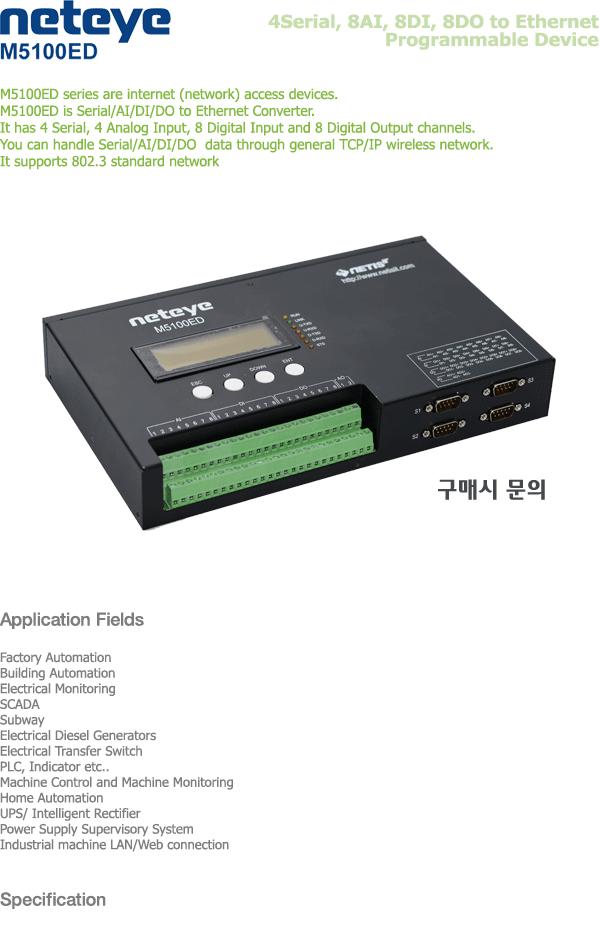

Multi-function Server
Item
Description
CPU
32-Bit Micro Controller, 400MHz
Programmable device
Memory
32Mbytes Flash
64Mbytes SRAM (PC100)
Network Interface
100 Base-T Ethernet Interface (IEEE 802.3)
Network Protocol
TCP/UDP/IP/ICMP/ARP/
IEEE802.3 (Standard Ethernet)
MMC
LCD : 4 * 20 character
KEY : 4-function key
Serial Interface
Port : RS232 - 2 port, RS232/422/485 - 2 port
Speed : 1200 ~ 115200bps
Data bit : 7, 8bit
Parity : even, odd, none
Stop bit : 1, 2 stop bit
Analog Input
Interface
Resolution : 24-bit
Channel : 8 Differential
Input Range : 4 ~ 20mA, ±5VDC
Accuracy : ±0.1% or better
Sampling Rate : 12 sample/sec (about total channel)
Input Impedance : 20M ohm
Connect 250 ohm(1%) between both sides for 4~20mA application
Digital Input
Interface
Isolated Digital(pulse) Input 8 Channel (-50 ~ 50VDC)
Counter ; detect 1 msec duty cycle
Isolation Voltage: 2500Vrms
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input)
Digital Output
Interface
Isolated Digital Output 8 Channel
Channel 1 ~ 4 ; Photo Relay. Max 600mA(DC 50V)
Isolation Voltage: 2500Vrms
Channel 5 ~ 8 ; Mechanical Relay, 250VAC/5A
Indicator
RUN(Red) : Blink when system status is good
LINK(Green) : It lights on when connected LAN cable
TCP1(Orange) : TCP establishment for serial 1
TCP1(Orange) : TCP establishment for serial 2
TCP1(Orange) : TCP establishment for serial 3
TCP1(Orange) : TCP establishment for serial 4
TCP5(Orange) : TCP establishment for AI/DI/DO
Utility Software
Setup Program (Windows 98/ME/NT/2000/XT)
Simulator : Test result display demo program
Environment
Input Current : max 2A
Input Voltage : 5VDC adapter
Storage Temperature : -20 ~ 70 °C
Operating Temperature : 0 ~ 50 °C
Dimension
98(W)x130(D)x33(H)mm
Ordering Information
M5100ED : Serial /Analog Input/ Digital Input/ Digital Output to wireless device
