| Item |
Description |
| CPU |
32-Bit Micro Controller, 400MHz |
| Memory |
32Mbytes Flash
32Mbytes SRAM (PC100) |
| Network Interface |
100 Base-T Ethernet Interface (IEEE 802.3) |
| Network Protocol |
TCP/UDP/IP/ICMP/ARP, TELNET, FTP |
| Serial Interface |
 |
Port : S1202ED - 2 port, S1204ED - 4 port |
|
Speed : 1200 ~ 230400bps |
|
Data bit : 7, 8bit |
|
Parity : even, odd, none |
|
stop bit : 1,1.5, 2 stop bit |
|
Hardware Handshaking RTS/CTS support |
|
selected RS232, RS422, RS485 by piano switch |
|
| Indicator |
|
PWR(Red) : It lights on when Power is On |
|
LINK(Green) : On when LAN cable is connected |
|
LAN(Green) : Blinking when data are Transmite and received from Ethernet |
|
TCP1(Orange) : TCP establishment for serial 1 |
|
TCP2(Orange) : TCP establishment for serial 2 |
|
TCP3(Orange) : TCP establishment for serial 3 |
|
TCP4(Orange) : TCP establishment for serial 4 |
|
| Utility Software |
NetEye Setup Program (Windows XP/2000/7)
NetEye Search, IP Setup, Built-In on Network.
Simulator:Test Result Display Demo Program |
| Environment |
|
Input Current : max 1A |
|
Input Voltage : DC 7V (adapter) |
|
Humidity : 0 ~ 95% |
|
Operating Temperature : 0 ~ 50 °C |
|
Storage Temperature : -20 ~ 70 °C |
|
| Dimension |
|
100(W)x170(D)x30(H)mm |
|
| Ordering Information |

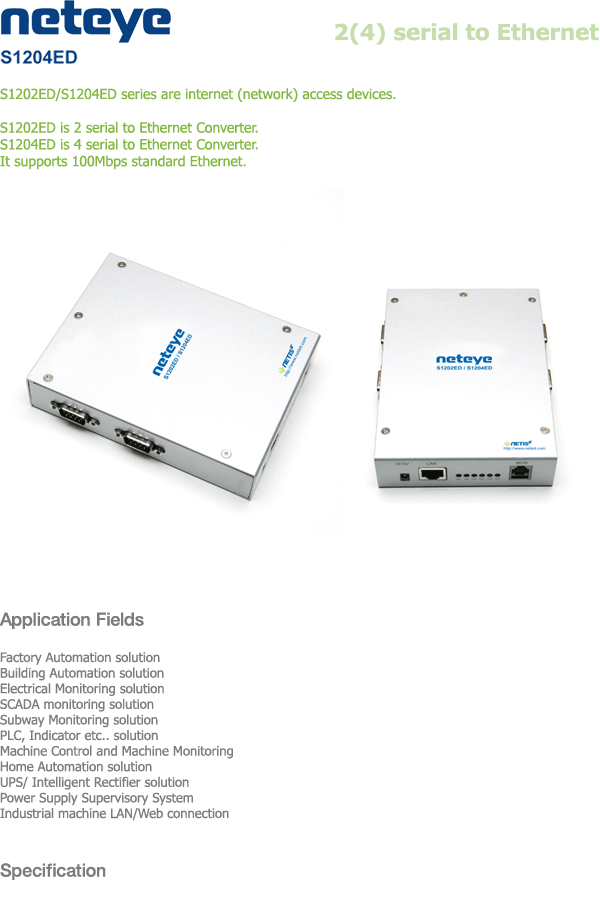

S1202ED : 2 serial to ethernet device
S1204ED : 4 serial to ethernet device |
| etc |
|
