Item Description
CPU 32-Bit Micro Controller, 400MHz
Programmable device
Memory 32Mbytes Flash
32Mbytes SRAM (PC100)
Network Interface Wired Interface
100 Base-T Ethernet Interface (IEEE 802.3)

Wireless Interface
802.11b/g/n standard
Antenna : 50ohm external antenna
Tx power : typical 14dBm (max 17dBm)
Rx sensitivity : -89dBm(@11Mbps), -74dBm(@54Mbps), -66dBm(@150Mbps)
Network Protocol TCP/UDP/IP/ICMP/ARP/
IEEE802.3 (Standard Ethernet)
Device ability TCP Server/Client
Serial Interface
Port ; RS232 - 1 port, RS232/422/485 - 1 port
Speed : 4800 ~ 115200bps
Data bit : 8bit
Parity : even, odd, none
Stop bit : 1stop bit
Digital Input
Interface
Isolated Digital(pulse) Input 2 Channel (-50 ~ 50VDC)
Counter ; detect 1 msec duty cycle
Isolation Voltage: 2500Vrms
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input)
Digital Output
Interface
Isolated Digital Output 1 Channel
Photo Relay. Max 600mA
Isolation Voltage: 2500Vrms
Indicator
RUN(Red) : Blink when system status is good
WLS(Yellow) : It lights on when Client can communicate with AP
LINK(Green) : It lights on when connected LAN cable
TCP(Orange) : It lights on when TCP Socket connected
DI1~2(Green) : It lights on when received active signal DI port
DO(Red) : It lights on when controlled DO port on state
Utility Software
Setup Program (Windows 98/ME/NT/2000/XT)
Simulator : Test result display demo program
Environment
Input Current : max 1A
Input Voltage : 5VDC adapter
Storage Temperature : -20 ~ 70 °C
Operating Temperature : 0 ~ 50 °C
Dimension
98(W)x130(D)x33(H)mm

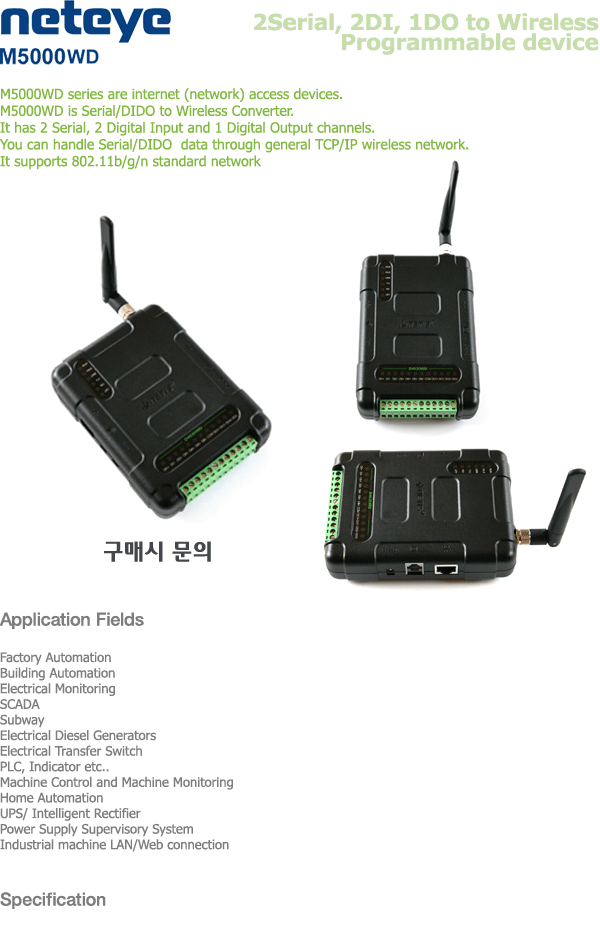

Ordering Information M5000WD : Serial / Digital Input/ Digital Output to wireless device
etc
