| Item |
Description |
| CPU |
32-bit, 250MHz |
| Memory |
2 Mbytes Flash
8 Mbytes Data SDRAM
32 Kbytes FRAM |
| Interface |
IEEE802.3(Standard Ethernet)
1 Serial Port (RS232/422/485 selected by software)
 |
Speed : 300 ~ 230400bps |
|
Data bit : 7,8 bit |
|
Parity : none, odd, even |
|
Stop bit : 1, 2 stop bit |
|
| Network Protocol |
TCP/UDP/IP/ICMP/ARP/BOOTP/TFTP |
| Device Ablility |
TCP Server/Client, DHCP, SMTP client |
| Wireless LAN |
|
wireless standard : IEEE802.11b/g |
|
Speed : 1200 ~ 230400bps |
|
Frequency Range : 2.4~2.4835 GHz (13 channels) |
|
Data Rates : 54,48,36,24,18,12,9,6,11, 5.5, 2 and 1 Mbps |
|
Modulation : CCK, DBPSK, DQPSK, OFDM |
|
Antenna : 50ohm external two antenna |
|
Tx power : typical 15dBm (max 20dBm) |
|
Rx sensitivity : -85dBm(Min:11Mbps), -92dBm(Min:2Mbps) |
|
Security : WPA, WPA2, WEP Encryption, AES and/or TKIP |
|
| Coverage Area |
Open Space : 100~300m
Indoor : 50~100m |
| Indicator |
|
PWR(Red) : It lights on when Power is On |
|
WLS(Green) : Indicating wireless LAN status
Blinking- Client is searching AP
On- Client can communicate with AP |
|
TCP(Orange) : TCP establishment for serial port |
|
| Utility Software |
NetEye Setup Program (Windows XP/2000/7)
NetEye Search, IP Setup, Built-In on Network.
Simulator:Test Result Display Demo Program |
| Environment |
|
Input Current : max 400mA |
|
Input Voltage : DC5V |
|
Humidity : 0 ~ 95% |
|
Operating Temperature : 0 ~ 50 °C |
|
Storage Temperature : -20 ~ 70 °C |
|
| Dimension |
|
93(W)x88(D)x25(H)mm |
|
| Ordering Information |

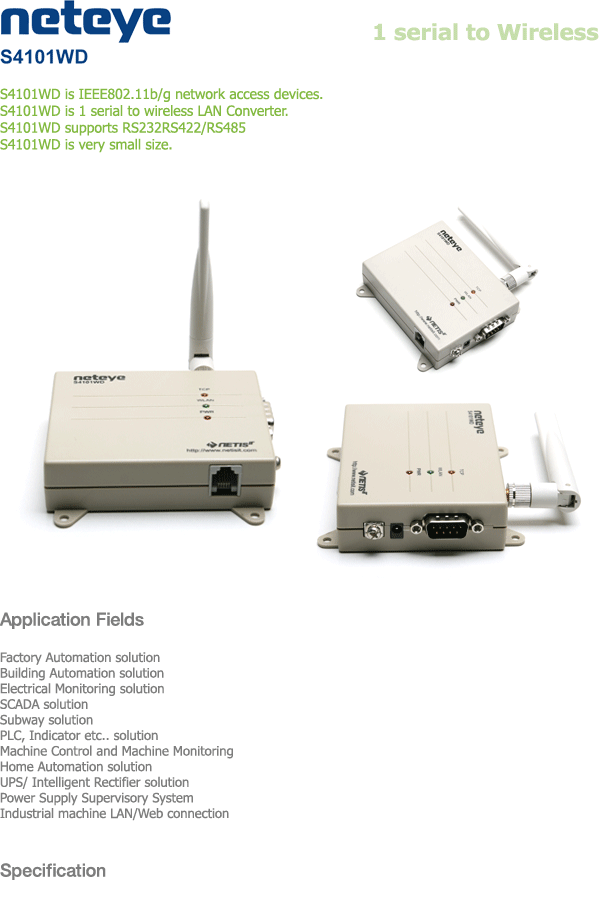

S4101WD : 1 serial to Ethernet Converter (RS232, N, 8, 1 only) |
| etc |
|
|
|
|
 |
|
