Serial Server
Item
Description
System
CPU : 8-Bit Micro Controller, 22Mhz
Memory
- 64Kbytes Flash (Program Memory)
- 32KBytes SRAM (Data Memory)
Watchdog (on/off selected by jumper)
Network Interface
10/100 Base-T Ethernet Interface (IEEE 802.3)
Auto detection
Network Protocol
TCP/UDP/IP/ICMP/ARP, IEEE802.3(Standard Ethernet)
Serial Interface
Speed : 1200 ~ 115200 bps
Data bit : 8bit
Parity : None, odd, even
Stop bit : 1bit
Indicators
10M(Green) : Blinking when data are transmitted to 100M Ethernet
PWR(Red) : On when 5VDC is supplied
TCP(Orange) : On when TCP connection is established
Utility Software
NetEye Setup Program (Windows XP/2000/7)
NetEye Search, IP Setup, Built-In on Network.
Simulator:Test Result Display Demo Program
Environment
Input Current : max 100mA
Input Power : DC5V
Humidity : 0 ~ 95%
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 70 °C
Dimension
74(W)x53(D)x25(H)mm
Ordering Information

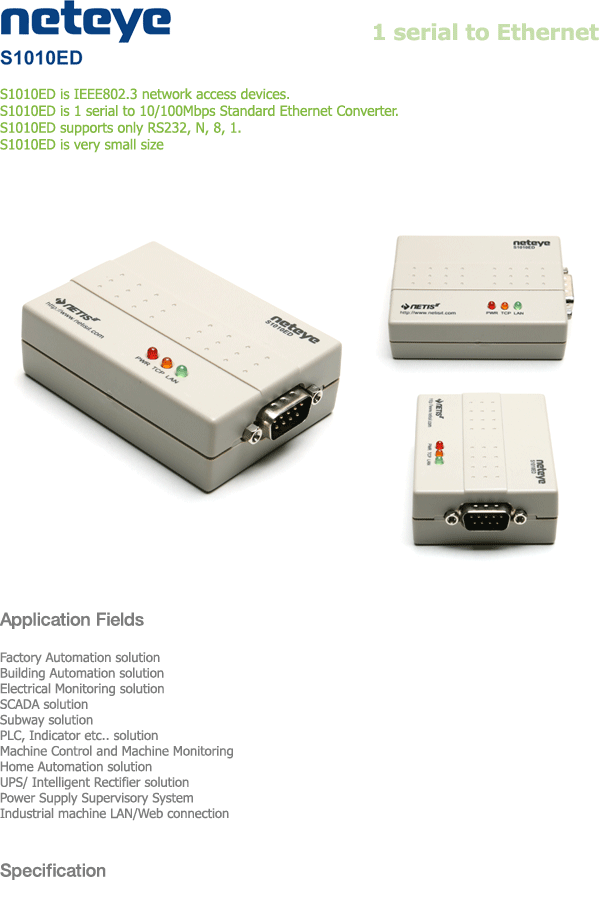

S1010ED : 1 serial to Ethernet Converter (RS232, N, 8, 1 only)
etc
